Basic Specifications
Printing:
ISO Print Speed:ISO 24734, A4 (Black / Colour): Simplex: Up to 8.0 ipm / 8.0 ipm
ISO 24734, A3 (Black / Colour): Simplex: Up to 3.0 ipm / 3.0 ipm
Printer Language: ESC/P-R, ESC/P Raster
CD/DVD Printing: Yes
PVC/ID card printing: Yes
Automatic 2-sided Printing: No
Warranty
2-years Warranty or 50,000 Pages (A4), (whichever comes first)
Download Product Brochure
Detailed Specifications
Printer Type:
Printer Type: PrintPaper Handling:
Paper Feed Method: Friction feedNumber of Paper Trays: 1
Paper Hold Capacity:
Input Capacity:
Up to 80 sheets of A3 Plain Paper (80g/m2) 50 sheets of Premium Glossy Photo Paper
Output Capactiy:
Up to 100 sheets of A3 Plain Paper Up to 30 sheets of Premium Glossy Photo Paper
Up to 80 sheets of A3 Plain Paper (80g/m2) 50 sheets of Premium Glossy Photo Paper
Output Capactiy:
Up to 100 sheets of A3 Plain Paper Up to 30 sheets of Premium Glossy Photo Paper
Support Paper Size: A6, A5, A4, A3, A3+, B6, B5, B4, 8K, 16K, Indian-Legal, Letter, 8 x 10″, 8.5 x 13″, Legal, 5 x 7″, 4 x 6″, 16:9 Wide, 105 x 148 mm, 3.5 x 5″, 54 x 86 mm (ID card), Envelopes #10, DL, C6, C4
Maximum Paper Size: 215.9 x 1200 mm (8.5 x 47.24″)
Print Margin: 0 mm top, left, right, bottom via custom settings in printer driver*3
Mobile and Cloud Solutions:

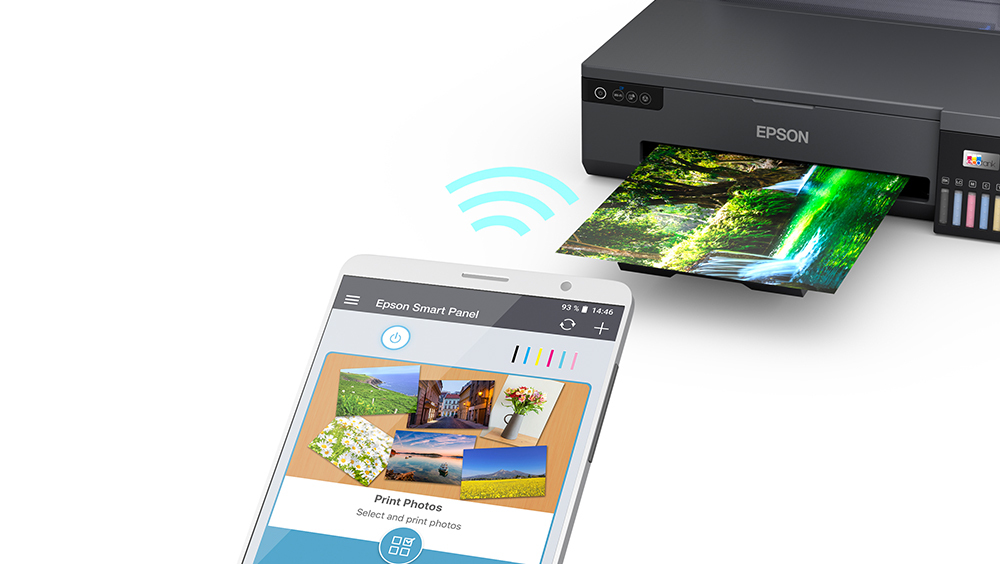

Epson Connect Features: Epson iPrint, Epson Email Print, Remote Print DriverOther Mobile Solutions: Epson Smart Panel
Noise Level:
PC Printing / PGPP:Sound Power (Black / Colour) 4.9 / 5.0 B(A),
Sound Pressure (Black / Colour) 40 / 40 dB(A)
Sound Pressure (Black / Colour) 40 / 40 dB(A)
PC Printing / Plain Paper Default*4:
Sound Power (Black / Colour) 6.3 / 6.1 B(A),
Sound Pressure (Black / Colour) 50 / 48 dB(A)
Sound Pressure (Black / Colour) 50 / 48 dB(A)
Consumables:
Standard Capacity Black:Page Yield *5: 3,600 pages
Order Code: 057
Order Code: 057
Standard Capacity Cyan:
Page Yield: 7,200 (Composite Yield)
Photo Page Yield (4R)Â *6: 2,100 (Composite Yield)
Order Code: 057
Photo Page Yield (4R)Â *6: 2,100 (Composite Yield)
Order Code: 057
Standard Capacity Magenta:
Page Yield: 7,200 (Composite Yield)
Photo Page Yield (4R): 2,100 (Composite Yield)
Order Code: 057
Photo Page Yield (4R): 2,100 (Composite Yield)
Order Code: 057
Standard Capacity Yellow:
Page Yield: 7,200 (Composite Yield)
Photo Page Yield (4R): 2,100 (Composite Yield)
Order Code: 057
Photo Page Yield (4R): 2,100 (Composite Yield)
Order Code: 057
Standard Capacity Light Cyan:
Page Yield: 7,200 (Composite Yield)
Photo Page Yield (4R): 2,100 (Composite Yield)
Order Code: 057
Photo Page Yield (4R): 2,100 (Composite Yield)
Order Code: 057
Standard Capacity Light Magenta:
Page Yield: 7,200 (Composite Yield)
Photo Page Yield (4R): 2,100 (Composite Yield)
Order Code: 057
Photo Page Yield (4R): 2,100 (Composite Yield)
Order Code: 057
Maintenance Box: C12C934591
Replacement Pick Up Roller Standard Cassette: C12C937771
Electrical Specifications:
Rated Voltage: AC 220-240 VRated Frequency: 50 – 60 Hz
Operating:19 W
Sleep:0.6 W
Power Off:0.2 W
Standby:4.4 W
Interface:
USB: USB 2.0Network: Wi-Fi IEEE 802.11b/g/n, Wi-Fi Direct
Network Protocol: TCP/IPv4, TCP/IPv6
Network Management Protocols:
SNMP, HTTP, DHCP, APIPA, PING, DDNS, mDNS, SLP, WSD, LLTD
Printer Software:
Operating System Compatibility:Windows XP SP3 / XP Professional x64 SP2 / Vista / 7 / 8 / 8.1 / 10 / 11
Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022
Only printing and scanning functions are supported for Windows Server OS
Mac OS X 10.9.5 or later
Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022
Only printing and scanning functions are supported for Windows Server OS
Mac OS X 10.9.5 or later
Printing:
Printing Technology: Micropiezo PrintheadNozzle Configuration:
180 x 1 nozzles Black
180 x 1 per colour (Cyan, Magenta, Yellow, Light Cyan, Light Magenta)
180 x 1 per colour (Cyan, Magenta, Yellow, Light Cyan, Light Magenta)
Print Direction: Bi-directional printing
Maximum Print Resolution: 5760 x 1440 dpi (with Variable-Sized Droplet Technology)
Minimum Ink Droplet Size:1.5 pl
ISO Print Speed: ISO 24734, A4 (Black / Colour): Simplex: Up to 8.0 ipm / 8.0 ipm
ISO 24734, A3 (Black / Colour): Simplex: Up to 3.0 ipm / 3.0 ipm
ISO 24734, A3 (Black / Colour): Simplex: Up to 3.0 ipm / 3.0 ipm
First Page Out Time (Black / Colour): Approx. 14 sec / 14 sec
Automatic 2-sided Printing: No
Photo Default – 10 x 15 cm / 4 x 6″*2 #3 (Border / Borderless):Â Approx. 27 sec / 27 sec
Photo Default – A4*2 (Border / Borderless):Â Approx. 65 sec / 65 sec
Photo Default – A3*2 (Border / Borderless):Â Approx. 110 sec / 115 sec
CD / DVD Printing: Yes
Print Speed*1:
Draft Text – Memo, A4 (Black#1 / Colour#2): Up to 22 ppm / 22 ppm
ISO 24734, A4 Simplex (Black/Colour): Up to 8.0 ipm / 8.0 ipm
ISO 24734, A3 Simplex (Black/Colour): Up to 3.0 ipm / 3.0 ipm
ISO 24734, A4 Simplex (Black/Colour): Up to 8.0 ipm / 8.0 ipm
ISO 24734, A3 Simplex (Black/Colour): Up to 3.0 ipm / 3.0 ipm
Printer Language: ESC/P-R, ESC/P Raster
PVC/ID card printing: Yes
